Description

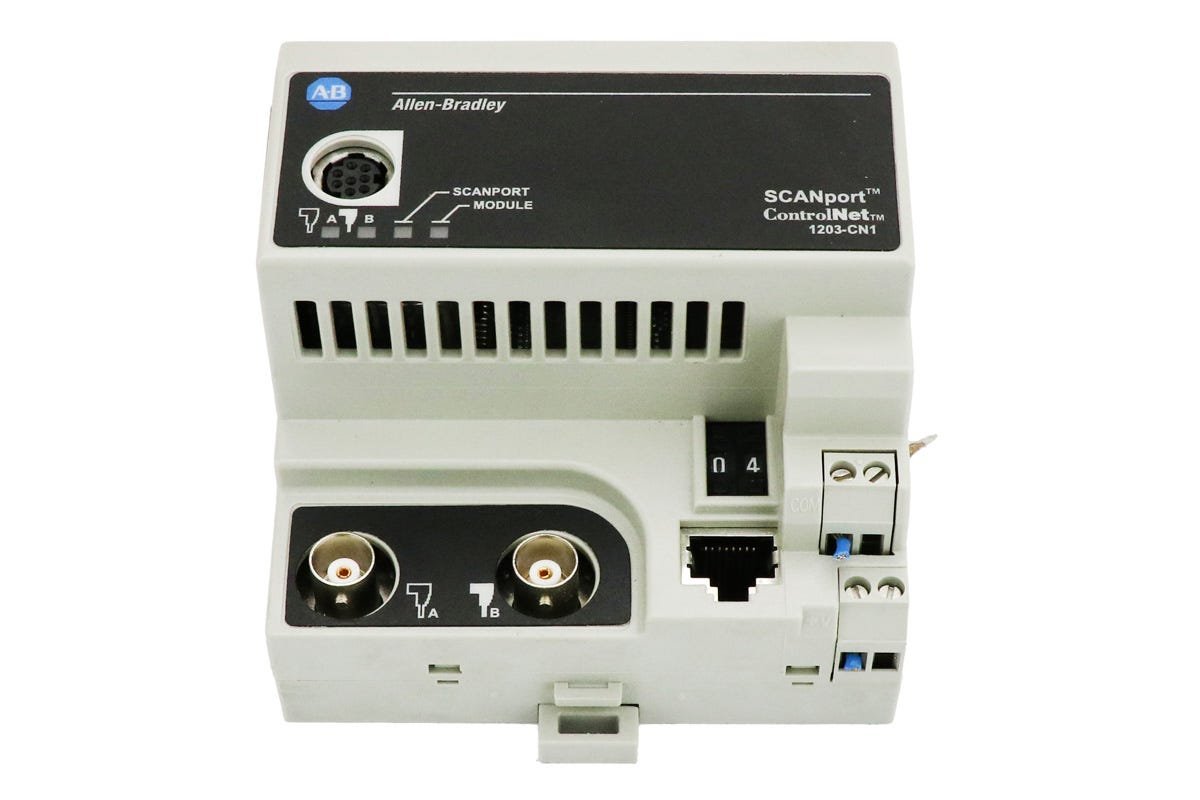

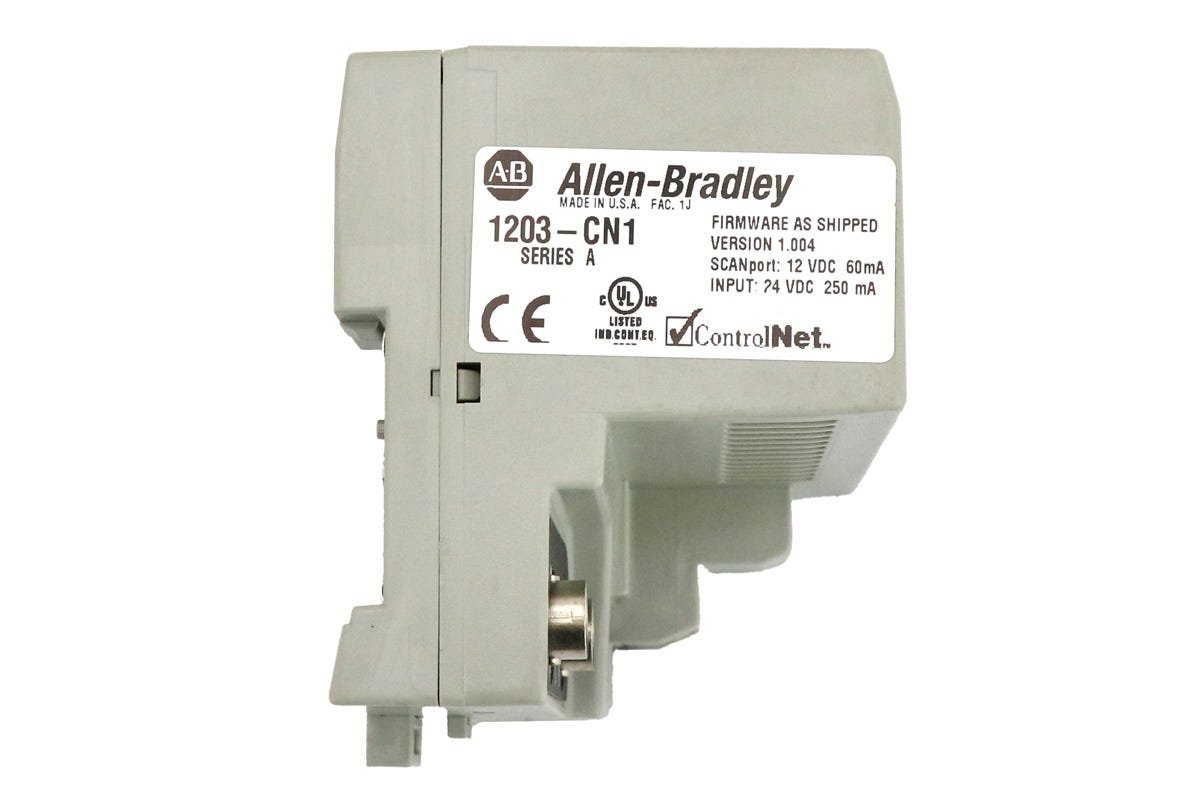

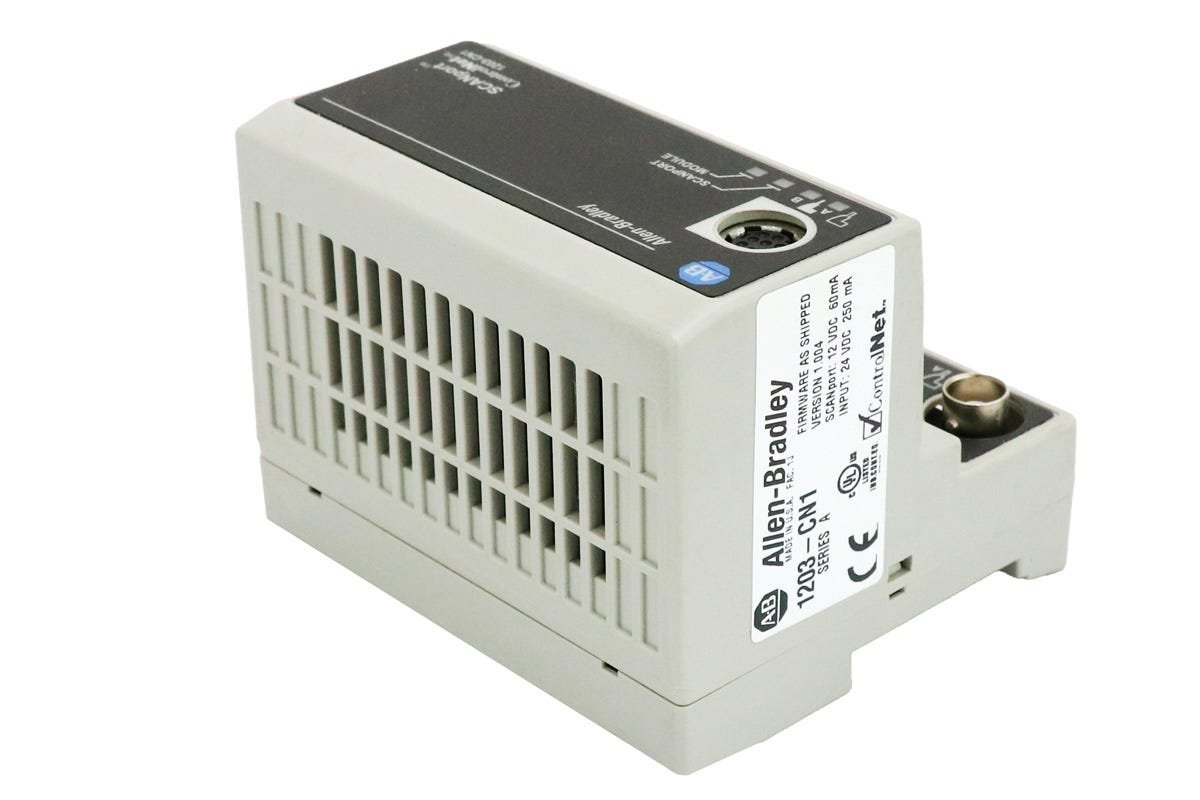

The Allen-Bradley 1203-CN1 ControlNet Communications Module is designed to act as an interface between a ControlNet network and a single SCANport device. It allows seamless data exchange and communication. enabling unscheduled messaging between industrial automation components.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	PLCs and Accessories
Part Number	1203-CN1
Subcategory	PLC Expansion Modules
Series	1203 Communication Modules
Communication Network	ControlNet
Mounting	DIN Rail
Ports	RS-232 serial communications port and a ControlNet network access port
Status Updates	Bi-color LEDs
Connection Cable	8-pin circular mini-DIN SCANport cable
Power Supply	24 Volts
Baud Rate	9600
Current Consumption	250 mA
Weight	0.24 kgs





Information About 1203-CN1

The 1203-CN1 module enables ControlNet to SCANport communication. ensuring efficient data transfer and control within industrial automation networks. Operating at 24V DC (250 mA). it provides robust performance in a temperature range of 0 to 55°C.

Key Features

• ControlNet to SCANport adapter: Enables seamless communication between ControlNet networks and SCANport devices.
• Operating voltage: 24V DC (-20% to +30%). ensuring stable performance.
• 9600 baud rate: Provides reliable data transmission in industrial applications.
• RS-232 port: Allows direct PC connection for programming and diagnostics.
• DIN rail mounting: Ensures easy and secure installation in control panels.
• Bi-color LED indicators: Provide quick visual diagnostics for communication status.
• Temperature range: Operates between 0 to 55°C. making it suitable for industrial environments.

The Allen-Bradley 1203-CN1 ControlNet Communications Module is a reliable and efficient solution for integrating SCANport devices into ControlNet networks. providing secure and stable communication in industrial automation environments.
