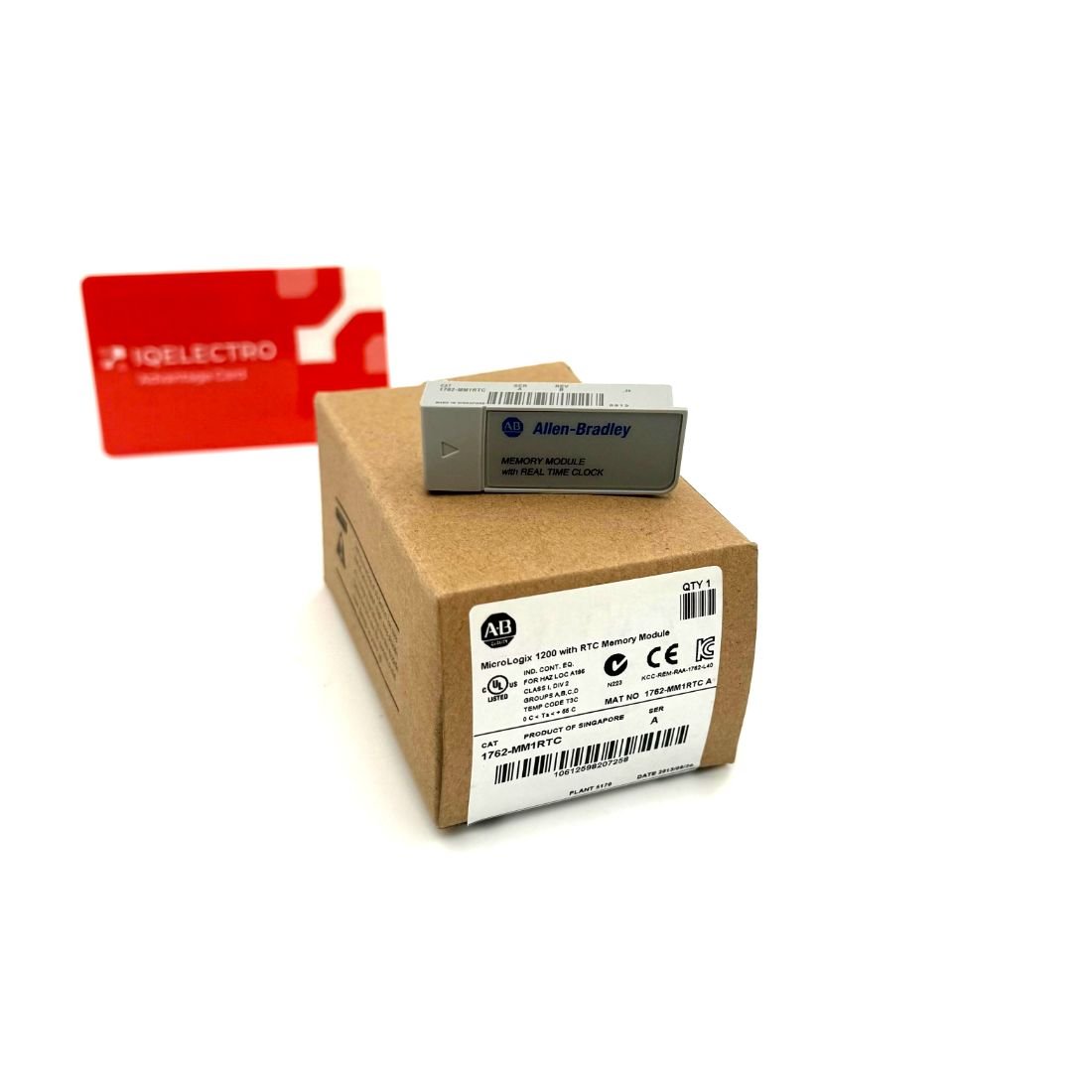

1762-MM1RTC | Allen-Bradley MicroLogix 1200 Memory and Real-Time Clock Module 1762-MM1RTC

Categories:
SKU: 1762-MM1RTC-18697516
Share:

Description

The 1762-MM1RTC module. manufactured by Allen-Bradley. combines memory and real-time clock functionalities. It features 4 interrupt inputs and 4 pulse catch/latching inputs. enhancing control capabilities in automation systems.





Technical Specifications

Brand Allen-Bradley
Category PLCs/Machine Control
Part Number 1762-MM1RTC
Subcategory PLC Battery/Cable/Accessory
Product Family MicroLogix 1200
Product Type Memory Module
Mounting Memory Module slot
User Memory 6 Kbytes
Operating Temperature 0-55 deg.C
Support automatic loading Yes
Support for removal under power Yes
System Overhead 270 µs
Configuration Software RSLogix 500
System Status File S:2/9 Memory Module Program Compare
Control Bits Load Memory Module on Memory Error S:1/10 Load Memory Module Always S:1/11 On Powerup. Go to run





Information About 1762-MM1RTC

The 1762-MM1RTC module. produced by Allen-Bradley. combines memory and real-time clock functions and is part of the MicroLogix 1200 series. This series includes a processor. power supply. input circuits. and output circuits. The 1762-MM1RTC is compatible with the Bulletin 1762 MicroLogix controller and supports an expansion I/O module that can accommodate up to 6 modules per controller. The controller should be mounted horizontally with the expansion I/O extending to the right. and users should allow 2 inches of space on all sides for proper ventilation.

The 1762-MM1RTC provides 4 interrupt inputs and 4 pulse catch/latching inputs. and features a built-in high-speed 20 kHz counter. It also offers a programmable limit switch function and can expand I/O to up to 136 points. Communication is facilitated by an isolated RS-485/RS-232 serial port.

To install the 1762-MM1RTC. remove the port cover for the real-time clock or memory module. align the memory module connector with the controller connector pins. and slide the memory module into the controller. Avoid touching sensitive areas. including the connector pins. to prevent electrostatic discharge damage.



Manufacturer information

Allen-Bradley. a brand of Rockwell Automation. specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs). motion control systems. safety devices. motor control equipment. automation software. and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
