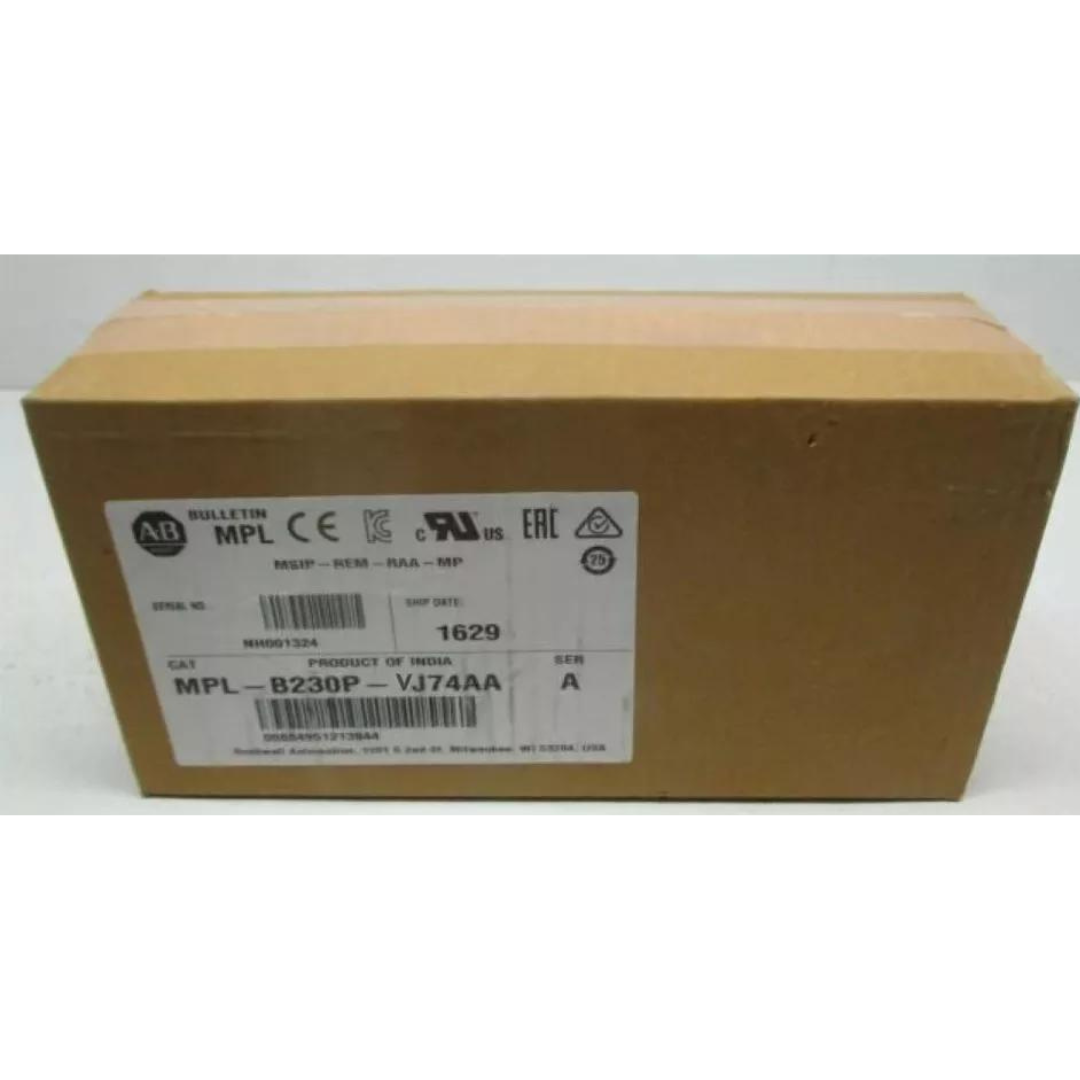

MPL-B230P-VJ74AA | Allen-Bradley Brushless Servo Motor MPL-B230P-VJ74AA 5000 RPM servo

Categories:
SKU: MPL-B230P-VJ74AA-18697936
Share:
Tags:

Description

Allen-Bradley MPL-B230P-VJ74AA Brushless Servo Motor is a low-inertia motor designed for high-performance applications. The motor operates at 460V and achieves a maximum speed of 5000 RPM. It belongs to the Bulletin MPL series and features a frame size of 75mm (2.95 inches) with a stack length of 76.2mm (3.0 inches). This motor includes a multi-turn high-resolution encoder for absolute feedback. ensuring precise control and positioning.

This low rotor inertia high-torque motor assembled by AB is a 5000 RPM servo. This MPL Series AC servo motor can be connected by right angle DIN cable connectors that are part of this high quality motor. Additionally, it features a multi-turn hyperface feedback, comes with a shaft key, with no shaft seal installed if a shaft key is needed, and a 24 VDC brake for applications that



Technical Specifications



Condition

New/Never Used Surplus

Manufacturer

Rockwell Automation

Brand

Allen-Bradley

Part Number

MPL-B230P-VJ74AA

Series

Premium permanent magnet rotary servo motor

Series Type

Low-inertia

Voltage Class

400 Volts AC

Frame Size

75 millimeters

Magnetic Stack Length

3 inches

Rated Speed

5000 rpm

Feedback

Multi-turn high-resolution encoder

Shaft Key/Seal

Shaft key/no shaft seal

Connectors

Circular DIN. right angle. 180 degrees rotatable

Brake

24 Volts DC brake

Mounting Flange

IEC metric

Factory Designated Options

Standard





Information About MPL-B230P-VJ74AA

The Allen-Bradley MPL-B230P-VJ74AA is a low-inertia brushless servo motor from the Bulletin MPL series. designed by Rockwell Automation. This motor operates at 460 volts AC and is intended for high-performance applications requiring precise control and high-speed capabilities. The motor features a frame size of 75 millimeters (2.95 inches) and a magnetic stack length of 76.2 millimeters (3.0 inches). It is rated for a maximum speed of 5000 RPM. making it suitable for applications demanding rapid acceleration and deceleration.

The MPL-B230P-VJ74AA includes a multi-turn high-resolution encoder providing absolute feedback. ensuring accurate positioning and reliable performance. This encoder type is essential for applications that require precise motion control and repeatability. The motor is equipped with a keyed shaft extension. which provides a secure mechanical connection to the load. enhancing the reliability of the system.

The electrical connection is facilitated through a SpeedTEC DIN connector. which is designed to be right-angled and 180 degrees rotatable. offering flexibility in installation and quick connect/disconnect capabilities. This feature is particularly useful in applications where space constraints or frequent maintenance activities are considerations





Manufacturer information

Allen-Bradley. a brand of Rockwell Automation. specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs). motion control systems. safety devices. motor control equipment. automation software. and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
